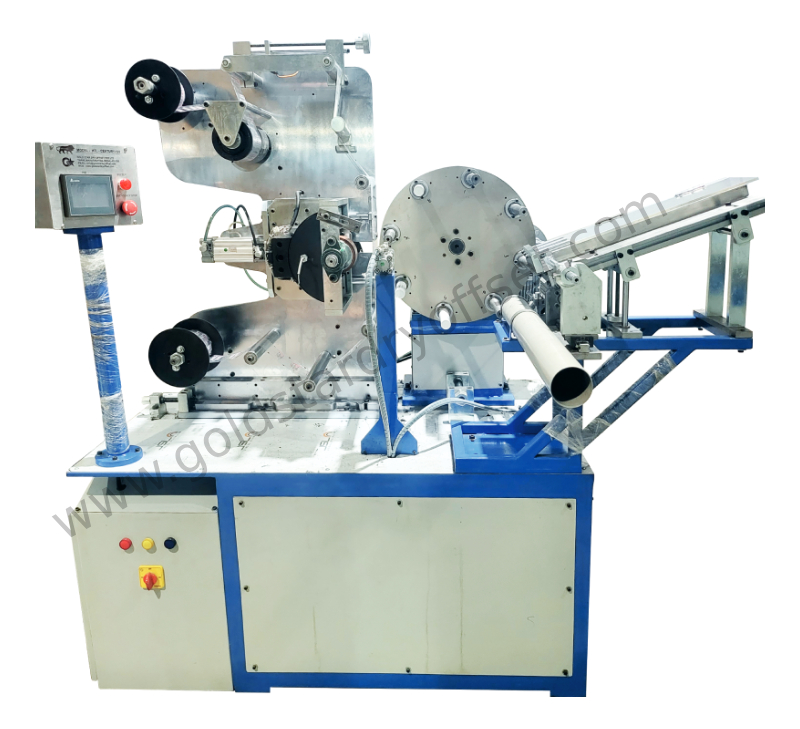

HTL-100 Fully Automatic HTL machine for Tubes
HTL-100 Fully Automatic HTL machine for Tubes
HTL-100 Fully Automatic HTL machine for Tubes Specifications
| Unit | Value |
|---|---|
| Mode of feeding. | Automatic on Mandrel |
| Min. & Max. Dia | 30mm x 70mm |
| Min. & Max. Height | 50 mm x 240mm max |
| Total Power Consumption | 6 Kw/ 3 Phase |
| Machine Speed | 1500 to 2500/hr |
HTL-100 Fully Automatic HTL machine for Tubes Features
Features
- 8 station Indexer with brake motor for positively stop at printing position.
- PLC based system with HMI.
- Auto loading and unloading of tubes.
- Vertical Foil movement towards gravitional direction for positive and accurate foil movement.
- Individual variable frequency drive for Silicon Roller.
- Special provision to avoid damage of silicon roller, incase of power failure.
- To-fro, angular, lateral movement provision for indexing head.
- Taper adjustment up to 6 degree included angle.
